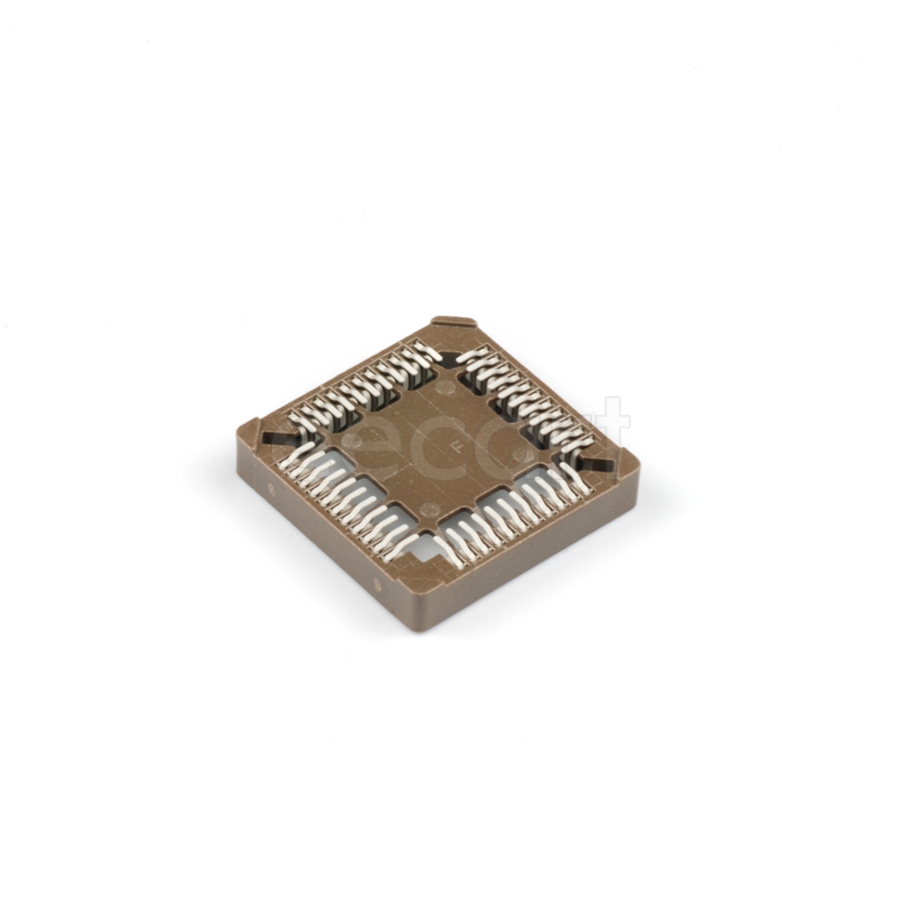

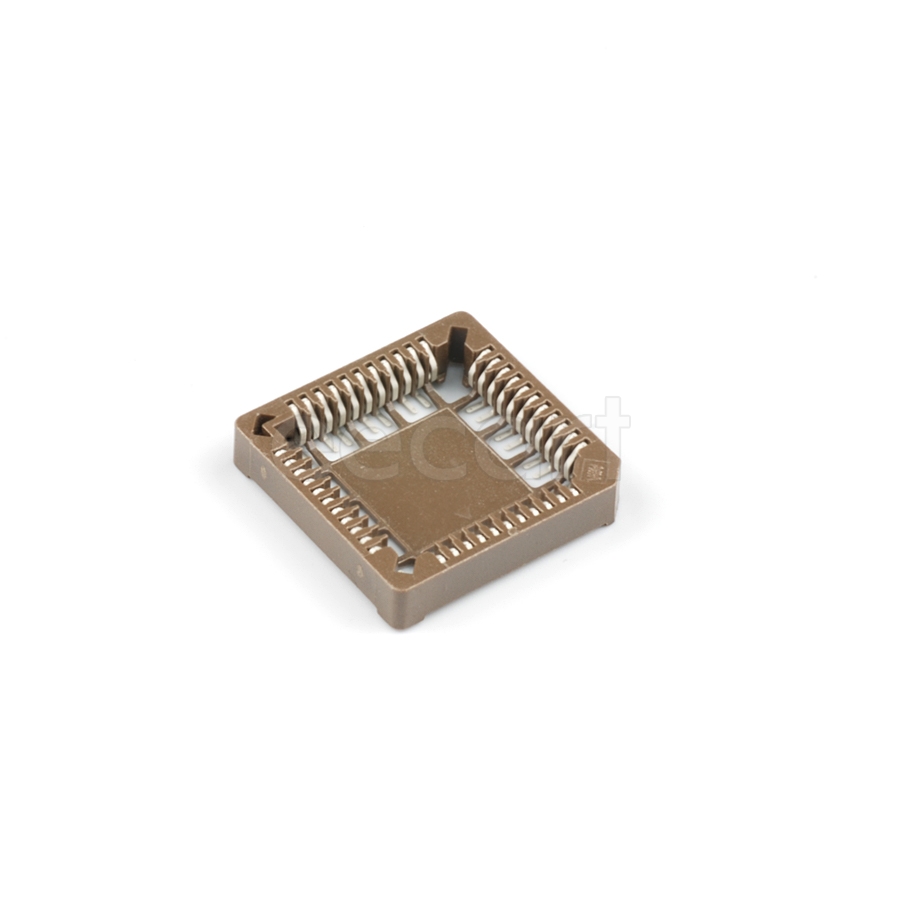

A-CCS-044-Z-T
Manufacturer:
Assmann WSW Components
Mfr.Part #:
A-CCS-044-Z-T
Datasheet:
Description:
IC and Component Sockets Through Hole Number of Positions:44 (4 x 11) Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 23.5 mm |
| Width | 23.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 44 |
| Height | 8 mm |
| Material | PBT |
| Packaging | Tube |
| Voltage Rating | 100 V |
| Depth | 23.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| Contact Plating | Tin |
| Lead Length | 3.302 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 44 |
| Number of Positions | 44 (4 x 11) |
| Insulation Material | Polybutylene |
| Housing Material | PBT |
| Contact Resistance | 15 mΩ |
| Contact Finish - Mating | Tin |
